ES6013 Twin Recessed spot light 220W cutsize 95195mm

Short Description:

We have enough raw materials in stock and provide fast delivery.

More than 100 kinds of patent designing led lights.

Convenient installation.

High lumen and high CRI led lighting.

Advanced designing led light products.

Input Voltage: AC220-240v

PF: 0.9

Driver : Lifud/eaglerise

LED source: Bridgelux/CREE

Optical Solution : lens

CRI: 90

Send email to us Download as PDF

Product Detail

Contact Us

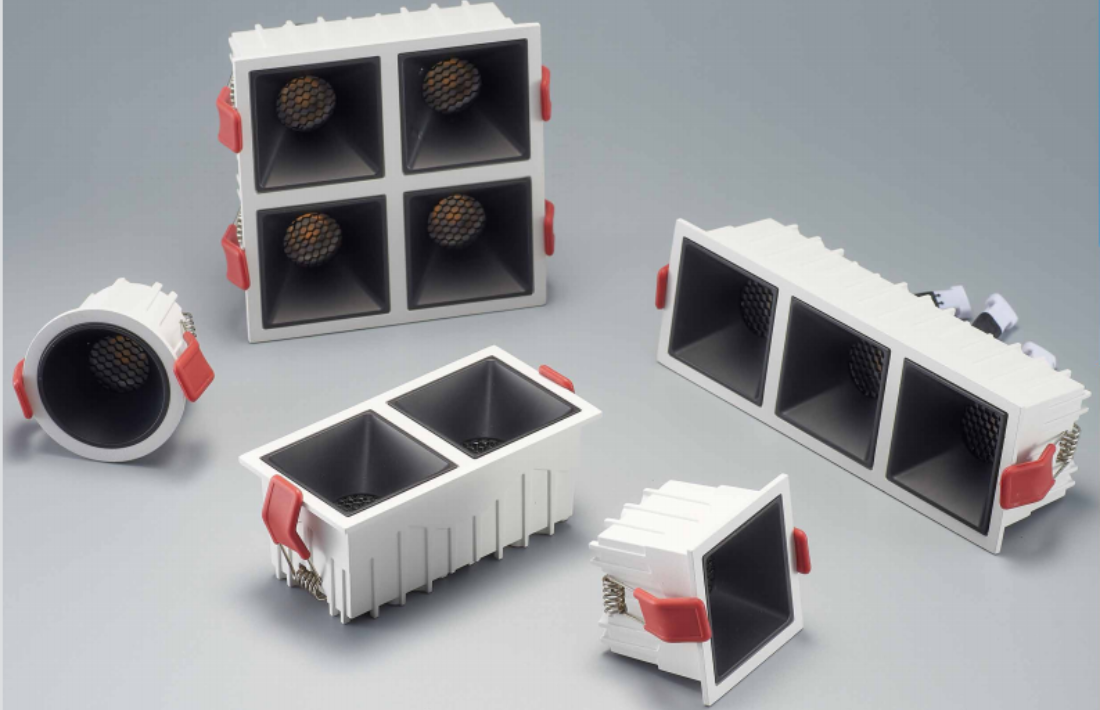

Twin Recessed spot light Products Photos

Power/W	Material	Size	Holecut	LED Source	Beam Angle	CCT
7W(round)	Aluminium diecasting	65*H52mm	55mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
7W(square)	Aluminium diecasting	6565H52mm	55*55mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
2*7W	Aluminium diecasting	65126H52mm	55*115mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
3*7W	Aluminium diecasting	65187H52mm	55*175mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
4*7W	Aluminium diecasting	126126H52mm	115*115mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
12W(round)	Aluminium diecasting	85*H163mm	75mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
12W(square)	Aluminium diecasting	8585H63mm	75*75mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
2*12W	Aluminium diecasting	85L167H63mm	75*160mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
3*12W	Aluminium diecasting	85L242H63mm	75*235mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
4*12W	Aluminium diecasting	166166H63mm	155*155mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
20W(round)	Aluminium diecasting	105*H77mm	95mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
20W(square)	Aluminium diecasting	105105H77mm	95*95mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K
2*20W	Aluminium diecasting	105L208H77mm	95*195mm	Bridgelux CREE	15°/24° /36°	3000K/4000K/5000K

Twin Recessed spot light Specifications

Type	Product：	Recessed Spot light
Type	Model No.：	ES6013
Electronical	Input Voltage：	220-240V/AC
	Frequency：	50Hz
	Power：	2*20W
	Power Factor：	0.9
	Total Harmonic Distortion：	＜5%
	Certificates：	CE,Rohs,CRP
Optical	Cover Material：	PC
	Beam Angle：	12° 24° 36°
	LED Quantity：	1pcs
	LED Package：	Bridgelux/CREE
	Luminous Efficiency：	≥90
	Color Temperature：	2700-5000K
	Color Render Index：	≥90
Lamp Structure	Housing Material：	Aluminum diecasting
	Diameter：	Φ105208H77mm
	Installation Hole：	Hole Cut Φ95*195mm
Surface Fnished	Fished	Powder painting(white color/customized color)
Antiglare Cover	color	white/black/silver/gunblack/gold
Waterproof	IP	44
Others	Installation Type：	Recessed Type (refer to the Manual)
	Application：	Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices etc.
	Ambient Humidity：	≥80%R.H.
	Ambient Temperature：	-10℃～+40℃
	Storage Tempertature：	-20℃～50℃
	Housing Temperature (working)：	<70℃ (Ta=25℃)
	Lifespan：	50000H

Remarks:

1. All pictures&data above are only for your reference, models may slightly differ due to factory operation.

2. According to demand of Energy Star Rules and other Rules, Power Tolerance ±10% and CRI ±5.

3. Lumen Output Tolerance 90%－120%.

4. Beam Angle Tolerance ±3° (angle below 25°) or ±5° (angle above 25°).

5. All Data were gained at Ambient Temperature 25℃.

Twin Recessed spot light Dimension

(unit:mm ±2mm，The following picture is a reference picture)

Model	Diameter① (caliber)	Diameter ② (Maximum outer diameter)	Height ③	Suggested Hole Cut	Net Weight（Kg）	Remark
ES6013	105	208	77	95*195	1.05

Twin Recessed spot light Installation

Please pay more attention to the below instructions while installation, in order to avoid any possible Fire Hazard, Electric Shock or Personal harm.

Twin Recessed spot light Instructions:

1. Cut off Electricity before installation.

2. The product can used in humid environment.

3. Please do not block any objects on the lamp (distance scale within 70mm), which will definitely affect heat emission while lamp’s working.

4. Please double check before getting electricity on if wiring is100% OK, make sure Voltage for lamp is right and no Short-Circuit.

Twin Recessed spot light Wiring

The Lamp can be directly connected to City Electric Supply and there’ll be detailed User’s Manual and Wiring Diagram.

Twin Recessed spot light Warning

1. The Lamp is only for Indoor and Dry application, keep away from Heat, Steam, Wet, Oil, Corrosion etc, which may affect its permanence and shorten the lifespan.

2. Please strictly follow the instructions while installation to avoid any Hazard or damages.

3. Any installation, check or maintenance should be done by professional, please do not DIY if without enough related knowledge.

4. For better and long performance, please clean the lamp at least every half year with soft cloth. (Do not use Alcohol or Thinner as cleaner which may damage the lamp surface).

5. Do not expose the lamp under strong sunshine, heat sources or other high-temperature places, and storage boxes cannot be piled up exceeding the requirements.

Twin Recessed spot light Packing

Package	Dimension )
Package	LED Downlight
Inner Box	868650mm
Outer Box	420420200mm 48PCS/carton
Net Weight	9.6kg
Gross Weight	11.8kg
Remarks: If the loading qty less than 48pcs in a carton, pearl cotton material should be used to fill remaining space. Accepted Loading Level is 6 (refer to the actual shown on carton box). The package can be as per customer’s specific demand. All package data are only for reference, it may be differ due to actual packing situation.
