ES4025 2*7W black twin heads Pro hotel spotlight with cutout 105*55mm CCT tunable
Led Recessed Lighting Products Photos
2X24W 190X95mm
2X7W 105X53mm
2X12W 145X73mm
2X12W 145X73mm
2X7W 105X53mm
2X24W 190X95mm
| Power/W | Material | Size | Hole cut | LED Source | Beam Angle | CCT |
| 2*7W | Aluminiumdiecasting | Φ114*62*76mm | 105*55mm | Bridgelux | 15/24/36/55° | 3000K/4000K/5000K |
| 2*12W | Aluminiumdiecasting | Φ158*85*90mm | 148*75mm | Bridgelux | 15/24/36/55° | 3000K/4000K/5000K |
| 2*24W | Aluminiumdiecasting | Φ196*116*92mm | 190*95mm | Bridgelux | 15/24/36/55° | 3000K/4000K/5000K |
Led Recessed Lighting Specifications
|
Type |
Product： |
Pro hotel Spot light |
|
Model No.： |
ES4025 |
|
|
Electronical |
Input Voltage： |
220-240V/AC |
|
Frequency： |
50Hz |
|
|
Power： |
2*7W |
|
|
Power Factor： |
0.5 |
|
|
Total Harmonic Distortion： |
＜5% |
|
|
Certificates： |
CE,Rohs,ERP |
|
|
Optical |
Cover Material： |
PC |
|
Beam Angle： |
15/24/36/55° |
|
|
LED Quantity： |
1pcs |
|
|
LED Package： |
Bridgelux |
|
|
Luminous Efficiency： |
≥90 |
|
|
Color Temperature： |
2700K/3000K/4000K |
|
|
Color Render Index： |
≥90 |
|
|
Lamp Structure |
Housing Material： |
Aluminium diecasting |
|
Diameter： |
Φ114*62*76mm |
|
|
Installation Hole： |
Hole Cut Φ105*55mm |
|
|
Surface Fnished |
Fished |
powder painting(white color/customized color) |
|
Water proof |
IP |
IP44 |
|
Others |
Installation Type： |
Recessed Type (refer to the Manual) |
|
Application： |
Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices etc. |
|
|
Ambient Humidity： |
≥80%R.H. |
|
|
Ambient Temperature： |
-10℃～+40℃ |
|
|
Storage Tempertature： |
-20℃～50℃ |
|
|
Housing Temperature (working)： |
<70℃ (Ta=25℃) |
|
|
Lifespan： |
50000H |
Remarks:
1. All pictures&data above are only for your reference, models may slightly differ due to factory operation.
2. According to demand of Energy Star Rules and other Rules, Power Tolerance ±10% and CRI ±5.
3. Lumen Output Tolerance 10%
4. Beam Angle Tolerance ±3° (angle below 25°) or ±5° (angle above 25°).
5. All Data were gained at Ambient Temperature 25℃.

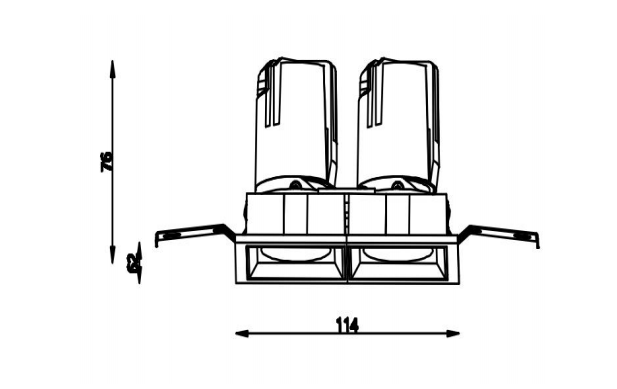

Led Recessed Lighting Dimension
(unit:mm ±2mm，The following picture is a reference picture)
|
Model |
Diameter① (caliber) | Diameter ② (Maximum outer diameter) |
Height ③ |
Suggested Hole Cut |
Net Weight（Kg） |
Remark |
|
ES4025 |
114 |
62 |
76 |
105*55 |
0.85 |
Led Recessed Lighting Application
Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices etc.
Led Recessed Lighting Installation
Please pay more attention to the below instructions while installation, in order to avoid any possible Fire Hazard, Electric Shock or Personal harm。
Instructions:
1. Cut off Electricity before installation.
2. The product can used in humid environment.
3. Please do not block any objects on the lamp (distance scale within 70mm), which will definitely affect heat emission while lamp’s working.
4. Please double check before getting electricity on if wiring is100% OK, make sure Voltage for lamp is right and no Short-Circuit.
Led Recessed Lighting Wiring
The Lamp can be directly connected to City Electric Supply and there’ll be detailed User’s Manual and Wiring Diagram.
Led Recessed Lighting Warning
1. The Lamp is only for Indoor and Dry application, keep away from Heat, Steam, Wet, Oil, Corrosion etc, which may affect its permanence and shorten the lifespan.
2. Please strictly follow the instructions while installation to avoid any Hazard or damages.
3. Any installation, check or maintenance should be done by professional, please do not DIY if without enough related knowledge.
4. For better and long performance, please clean the lamp at least every half year with soft cloth. (Do not use Alcohol or Thinner as cleaner which may damage the lamp surface).
5. Do not expose the lamp under strong sunshine, heat sources or other high-temperature places, and storage boxes cannot be piled up exceeding the requirements.
Led Recessed Lighting Packing Dimension
|
Package |
Dimension ) |
|
|
LED Downlight |
|
Inner Box |
86*86*50mm |
|
Outer Box |
420*420*200mm 48PCS/carton |
|
Net Weight |
9.6kg |
|
Gross Weight |
11.8kg |
|
Remarks： If the loading qty less than 48pcs in a carton, pearl cotton material should be used to fill remaining space.
|
|
Led Recessed Lighting Product Introduction
Our pro hotel spotlights are the perfect lighting solution for any modern hotel or commercial space. This slim luminaire has a sleek, modern design and is designed for a 105*55mm aperture. Featuring adjustable heads, this versatile spotlight can be angled to accentuate any feature in your space. Made of high-quality material, this spotlight is durable. Durable metal construction is strong yet lightweight for easy setup and operation. The spotlight's high-quality LED bulbs provide bright, efficient lighting that will last for years. The dual-ended design of this spotlight makes it ideal for illuminating artwork or decorative objects in your space. Light head is independently adjustable, allowing you to create the perfect lighting effect for your unique needs. Whether you want to highlight a beautiful painting, a unique sculpture or an eye-catching feature wall, this spotlight has you covered. In addition to function, this spotlight is also at the forefront of fashion . Its sleek, contemporary design is perfect for any contemporary space, and its minimalistic aesthetic is sure to complement any decoration. With its clean lines and sophisticated design, the Hotel Spotlight is the perfect lighting solution for any modern commercial space. Overall, this hotel spotlight is an excellent choice for anyone looking for a high-quality lighting solution for commercial spaces. With its durable construction, energy-efficient LED bulb, and versatile design, this spotlight is sure to meet all your lighting needs. Order today and see what a difference this stylish and efficient spotlight can make in your space.
