Factory Direct High Lumen Hotel Project Square 5W 8W 10W 15W COB LED Spotlight

Short Description:

Yuelight LED 200W Electronic Focus Soft Light Spotlight
Decorating High Power LED Hotel Home Stores Ceiling Lights LED Spotlight

Send email to us Download as PDF

Product Detail

Contact Us

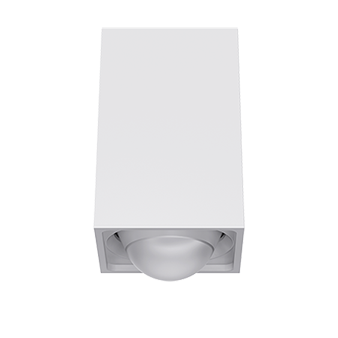

Ceiling Spot Lights LED Products Photos

MZ7002S-ZZ10W-FG-2-FGB Specifications

Model No		MZ7002S-ZZ10W-FG-2-FGB
Series		Oppra
Electronic	Wattage	12W
	Input Voltage	AC220-240V
	PF	0.5
	Driver	Eaglerise/lifud
Optical	LED source	bridgelux cob
	Beam angle	120° (Lens)
	CRI	>90
	CCT	2700/3000/4000K
Mechanism	Shape	square
	Dimension (MM)	77*77xH116
	hole cut(mm)
	body color	white/black
	Materials	aluminium
IP		20
Warranty		5years

Remarks:

1. All pictures&data above are only for your reference, models may slightly differ due to factory operation.

2. According to demand of Energy Star Rules and other Rules, Power Tolerance ±10% and CRI ±5.

3. Lumen Output Tolerance 10%

4. Beam Angle Tolerance ±3° (angle below 25°) or ±5° (angle above 25°).

5. All Data were gained at Ambient Temperature 25℃.

Ceiling Spot Lights LED Installation

Please pay more attention to the below instructions while installation, in order to avoid any possible Fire Hazard, Electric Shock or Personal harm。

Instructions:

1. Cut off Electricity before installation.

2. The product can used in humid environment.

3. Please do not block any objects on the lamp (distance scale within 70mm), which will definitely affect heat emission while lamp’s working.

4. Please double check before getting electricity on if wiring is100% OK, make sure Voltage for lamp is right and no Short-Circuit.

Ceiling Spot Lights LED Wiring

The Lamp can be directly connected to City Electric Supply and there’ll be detailed User’s Manual and Wiring Diagram.

Ceiling Spot Lights LED Warning

1. The Lamp is only for Indoor and Dry application, keep away from Heat, Steam, Wet, Oil, Corrosion etc, which may affect its permanence and shorten the lifespan.

2. Please strictly follow the instructions while installation to avoid any Hazard or damages.

3. Any installation, check or maintenance should be done by professional, please do not DIY if without enough related knowledge.

4. For better and long performance, please clean the lamp at least every half year with soft cloth. (Do not use Alcohol or Thinner as cleaner which may damage the lamp surface).

5. Do not expose the lamp under strong sunshine, heat sources or other high-temperature places, and storage boxes cannot be piled up exceeding the requirements.

Ceiling Spot Lights LED Packing Dimension

Package	Dimension )
	LED Downlight
Inner Box	868650mm
Outer Box	420420200mm 48PCS/carton
Net Weight	9.6kg
Gross Weight	11.8kg
Remarks： If the loading qty less than 48pcs in a carton, pearl cotton material should be used to fill remaining space. Accepted Loading Level is 6 (refer to the actual shown on carton box) The package can be as per customer’s specific demand. All package data are only for reference, it may be differ due to actual packing situation.

Ceiling Spot Lights LED Product Introduction

Transform your space with our 5W-25W Aluminum Adjustable Recessed Dimmable LED Downlight. This innovative lighting solution is designed for versatility and efficiency, making it perfect for any modern home or office. The adjustable feature allows you to direct light where it’s needed most, providing focused illumination for tasks or ambient lighting for relaxation.

Constructed from high-quality aluminum, this downlight is built to last while maintaining a sleek and stylish appearance. The dimmable capability allows you to customize the brightness, ensuring that you can create the perfect atmosphere for any occasion. With energy-efficient LED technology, you’ll enjoy long-lasting performance while reducing your energy costs.

This downlight is suitable for various applications, including kitchens, living rooms, and commercial spaces. With ETL and CE certifications, you can trust in its safety and reliability. Upgrade your lighting with our 5W-25W Aluminum Adjustable Recessed Dimmable LED Downlight and experience the perfect blend of style and functionality.
