5W dimmable led magnetic track light down light with high CRI single

Short Description:

More than 100 kinds of patent designed led lights.

Strong magnet and DC48V safety lock providing double security.

Advanced designed led light products.

The led lights can be dimmable: 0-10v/dali /bluetooth optional.

Advanced designing led lighting products.


  • Input Voltage: AC220-240v
  • PF: 0.5
  • Driver : /
  • LED source: Bridgelux
  • Optical Solution : /
  • CRI: 90
  • Product Detail

    Contact Us

    DENG

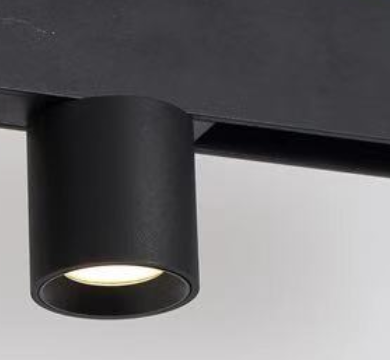

    Downlight Magnetic Led Track Lighting Products Photos

    Our LED magnetic track lighting is eco-friendly, safe, and has a long lifespan, offering sustainable, efficient illumination.
    Our LED magnetic track lighting is eco-friendly, safe, and has a long lifespan, offering sustainable, efficient illumination.
    Our LED magnetic track lighting, crafted from aluminum, offers exceptional heat dissipation, compact size, saving on installation and layout costs.
    adjustable grill 1
    Power/W Material Size Holecut LED Source Beam Angle CCT
    5W  Aluminium
    diecasting
    50*140mm / Bridgelux 24° 3000K/4000K/5000K
    2*5wW  Aluminium
    diecasting
    50*140mm / Bridgelux 24° 3000K/4000K/5000K
    DENG

    Downlight Magnetic Led Track Lighting Specifications

    Type

    Product:
    Magnetic Track Light
    Model No.: EM-DY3-5W02

    Electronical

    Input Voltage:

    220-240V/AC

    Frequency:

    50Hz

    Power:

    5W

    Power Factor:

    0.9

    Total Harmonic Distortion:

    <5%

    Certificates:

    CE,Rohs,CRP

    Optical

    Cover Material:

    PC

    Beam Angle:

    24°

    LED Quantity:

    1pcs

    LED Package:
    Bridgelux
    Luminous Efficiency:

    ≥90

    Color Temperature:

    3000K/4000K/5000K

    Color Render Index:

    ≥90

    Lamp Structure

    Housing Material:

    Aluminum diecasting

    Diameter:

    50*H140mm

    Installation Hole:
    /

    Surface Finished

    Finished:

    Powder painting(white color/customized color)

    Antiglare Cover

    color:

    white/black/silver/gunblack/gold

    Waterproof

    IP:

    20

    Others

    Installation Type:

    Track Recessed Type (refer to the Manual)

    Application: Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices etc.
    Ambient Humidity:

    ≥80%R.H.

    Ambient Temperature:

    -10℃~+40℃

    Storage Tempertature:

    -20℃~50℃

    Housing Temperature (working):

    <70℃  (Ta=25℃)

    Lifespan:

    50000H

    Remarks:

    1. All pictures&data above are only for your reference, models may slightly differ due to factory operation.

    2. According to demand of Energy Star Rules and other Rules, Power Tolerance ±10% and CRI ±5.

    3. Lumen Output Tolerance 90%-120%.

    4. Beam Angle Tolerance ±3° (angle below 25°) or ±5° (angle above 25°).

    5. All Data were gained at Ambient Temperature 25℃.

    DENG

    Downlight Magnetic Led Track Lighting Dimension

    (unit:mm ±2mm,The following picture is a reference picture)

    Our LED magnetic track lighting is eco-friendly, safe, and has a long lifespan, offering sustainable, efficient illumination.

    Model

    Diameter① (caliber) Diameter ② (Maximum outer diameter)

    Height

    Suggested Hole Cut

    Net WeightKg

    Remark

    EM-DY3-5W02

    50

    50

    140

    /

    9.1


    DENG

    Downlight Magnetic Led Track Lighting Installation

    Please pay more attention to the below instructions while installation, in order to avoid any possible Fire Hazard, Electric Shock or Personal harm.

    微信图片_20230817002104

    Instructions:

    1. Cut off Electricity before installation.

    2. The product can used in humid environment.

    3. Please do not block any objects on the lamp (distance scale within 70mm), which will definitely affect heat emission while lamp’s working.

    4. Please double check before getting electricity on if wiring is100% OK, make sure Voltage for lamp is right and no Short-Circuit.

    DENG

    Downlight Magnetic Led Track Lighting Wiring

    The Lamp can be directly connected to City Electric Supply and there’ll be detailed User’s Manual and Wiring Diagram.

    DENG

    Downlight Magnetic Led Track Lighting Warning

    1. The Lamp is only for Indoor and Dry application, keep away from Heat, Steam, Wet, Oil, Corrosion etc, which may affect its permanence and shorten the lifespan.

    2. Please strictly follow the instructions while installation to avoid any Hazard or damages.

    3. Any installation, check or maintenance should be done by professional, please do not DIY if without enough related knowledge.

    4. For better and long performance, please clean the lamp at least every half year with soft cloth. (Do not use Alcohol or Thinner as cleaner which may damage the lamp surface).

    5. Do not expose the lamp under strong sunshine, heat sources or other high-temperature places, and storage boxes cannot be piled up exceeding the requirements.

    DENG

    Downlight Magnetic Led Track Lighting Packing

    em1079-9

    Package

    Dimension )

    LED track light

    Inner Box

    Outer Box

    445*380*280mm

    20PCS/carton

    Net Weight

    4.6kg

    Gross Weight

    6.7kg

    Remarks:

    1. If the loading qty less than 48pcs in a carton, pearl cotton material should be used to fill remaining space.
    2. Accepted Loading Level is 6 (refer to the actual shown on carton box).
    3. The package can be as per customers specific demand.
    4. All package data are only for reference, it may be differ due to actual packing situation.
    DENG

    Downlight Magnetic Led Track Lighting Application

    Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices etc.

    track 场景1
    track 场景2
    Our LED magnetic track lighting, crafted from aluminum, offers exceptional heat dissipation, compact size, saving on installation and layout costs.
