2*5W dimmable downlight led magnetic light with CRI 97 double

Short Description:

We have enough raw materials in stock and provide fast delivery.

More than 100 kinds of led lights patented.

Magnetic led track lights can flexibly brighten wherever you want.

Strong magnet and DC48V safety lock providing double security.

Convenient installation: easy installation and true conceal.

Input Voltage: AC220-240v

PF: 0.5

Driver : /

LED source: Bridgelux

Optical Solution : /

CRI: 90

Send email to us Download as PDF

Product Detail

Contact Us

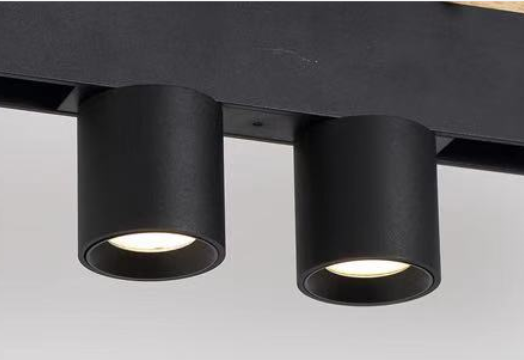

Downlight Magnetic Led Track Lighting Products Photos

Our LED magnetic track lighting features a compact size, customizable shapes and sizes, and helps save on installation and layout costs.

Our LED magnetic track lighting, crafted from aluminum, offers exceptional heat dissipation, compact size, saving on installation and layout costs.

Power/W	Material	Size	Holecut	LED Source	Beam Angle	CCT
5W	Aluminium diecasting	50*140mm	/	Bridgelux	24°	3000K/4000K/5000K
2*5wW	Aluminium diecasting	50*140mm	/	Bridgelux	24°	3000K/4000K/5000K

Downlight Magnetic Led Track Lighting Specifications

Type	Product：	Magnetic Track Light
Type	Model No.：	EM-DY3-10W02
Electronical	Input Voltage：	220-240V/AC
	Frequency：	50Hz
	Power：	10W
	Power Factor：	0.9
	Total Harmonic Distortion：	＜5%
	Certificates：	CE,Rohs,CRP
Optical	Cover Material：	PC
	Beam Angle：	24°
	LED Quantity：	1pcs
	LED Package：	Bridgelux
	Luminous Efficiency：	≥90
	Color Temperature：	3000K/4000K/5000K
	Color Render Index：	≥90
Lamp Structure	Housing Material：	Aluminum diecasting
	Diameter：	50*H140mm
	Installation Hole：	/
Surface Finished	Finished:	Powder painting(white color/customized color)
Antiglare Cover	color:	white/black/silver/gunblack/gold
Waterproof	IP:	20
Others	Installation Type：	Track Recessed Type (refer to the Manual)
	Application：	Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices etc.
	Ambient Humidity：	≥80%R.H.
	Ambient Temperature：	-10℃～+40℃
	Storage Tempertature：	-20℃～50℃
	Housing Temperature (working)：	<70℃ (Ta=25℃)
	Lifespan：	50000H

Remarks:

1. All pictures&data above are only for your reference, models may slightly differ due to factory operation.

2. According to demand of Energy Star Rules and other Rules, Power Tolerance ±10% and CRI ±5.

3. Lumen Output Tolerance 90%－120%.

4. Beam Angle Tolerance ±3° (angle below 25°) or ±5° (angle above 25°).

5. All Data were gained at Ambient Temperature 25℃.

Downlight Magnetic Led Track Lighting Dimension

(unit:mm ±2mm，The following picture is a reference picture)

Model	Diameter① (caliber)	Diameter ② (Maximum outer diameter)	Height ③	Suggested Hole Cut	Net Weight（Kg）	Remark
EM-DY3-10W02	50	50	140	/	9.1

Downlight Magnetic Led Track Lighting Installation

Please pay more attention to the below instructions while installation, in order to avoid any possible Fire Hazard, Electric Shock or Personal harm.

Instructions:

1. Cut off Electricity before installation.

2. The product can used in humid environment.

3. Please do not block any objects on the lamp (distance scale within 70mm), which will definitely affect heat emission while lamp’s working.

4. Please double check before getting electricity on if wiring is100% OK, make sure Voltage for lamp is right and no Short-Circuit.

Downlight Magnetic Led Track Lighting Wiring

The Lamp can be directly connected to City Electric Supply and there’ll be detailed User’s Manual and Wiring Diagram.

Its LED lights provide excellent and long-lasting illumination while also reducing energy consumption. Overall, the double-ended square hotel spotlight is a great lighting option for hotels looking to enhance their interior design and ambiance. With its adjustable design, energy-saving features and contemporary style, it is sure to create a cozy and inviting atmosphere for guests.

Downlight Magnetic Led Track Lighting Warning

1. The Lamp is only for Indoor and Dry application, keep away from Heat, Steam, Wet, Oil, Corrosion etc, which may affect its permanence and shorten the lifespan.

2. Please strictly follow the instructions while installation to avoid any Hazard or damages.

3. Any installation, check or maintenance should be done by professional, please do not DIY if without enough related knowledge.

4. For better and long performance, please clean the lamp at least every half year with soft cloth. (Do not use Alcohol or Thinner as cleaner which may damage the lamp surface).

5. Do not expose the lamp under strong sunshine, heat sources or other high-temperature places, and storage boxes cannot be piled up exceeding the requirements.

Downlight Magnetic Led Track Lighting Packing

Package	Dimension )
Package	LED track light
Inner Box
Outer Box	445380280mm 20PCS/carton
Net Weight	9.1kg
Gross Weight	11.7kg
Remarks: If the loading qty less than 48pcs in a carton, pearl cotton material should be used to fill remaining space. Accepted Loading Level is 6 (refer to the actual shown on carton box). The package can be as per customer’s specific demand. All package data are only for reference, it may be differ due to actual packing situation.
