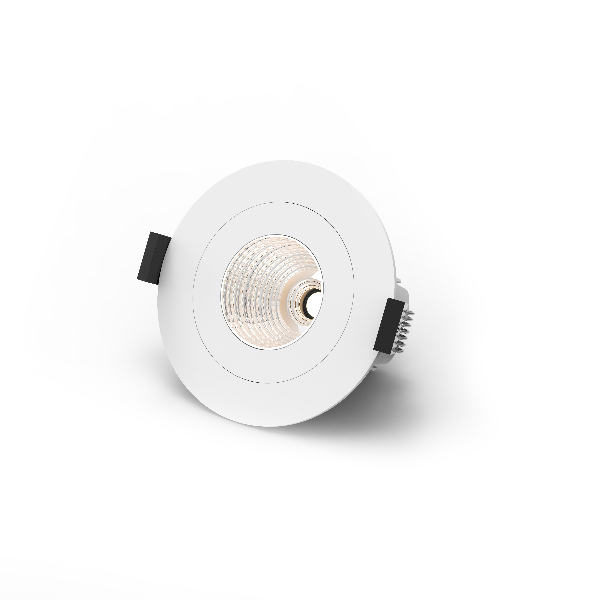

ES3004 antiglare downlight led ceiling lights classic spot Lights with cut size 68-75mm 10w/12w Featured Image
  • ES3004 antiglare downlight led ceiling lights classic spot Lights with cut size 68-75mm 10w/12w

ES3004 antiglare downlight led ceiling lights classic spot Lights with cut size 68-75mm 10w/12w

Short Description:

Various cut size and power applied for different indoor&commercial lighting projects.

Lower UGR<19.

Optional high lumen and high CRI.

The led lights can be dimmable: 0-10v/dali/bluetooth mesh dimming optional.

We have enough raw materials in stock and provide fast delivery.

More than 100 kinds patent designing.


  • Input Voltage: AC220-240V
  • PF: 0.5
  • SDCM: <3
  • Driver: Lifud/eaglerise
  • LED Source: Bridgelux
  • Optical Solution : reflector
  • CRI: 90
    • Download as PDF

    Product Detail

    Contact Us

    DENG

    Led Ceiling Light Products Photos

    Our LED downlights, made of aluminum with excellent heat dissipation, feature anti-glare technology, high color rendering, and various aperture sizes to meet diverse project needs.
    light back
    Model No Power/W Material Size Holecut LED Source Beam Angle CCT
    ES3001 6/8W aluminium 85*42mm 68-75mm Bridgelux 20°/40°/60° 2700K/3000K

    /4000K/5000K
    ES3002 10/12W aluminium 85*52mm 68-75mm Bridgelux 20°/40°/60° 2700K/3000K

    /4000K/5000K
    ES3003 6/8W aluminium 85*42mm 68-75mm Bridgelux 20°/40°/60° 2700K/3000K

    /4000K/5000K
    ES3004 10/12W aluminium 85*52mm 68-75mm Bridgelux 20°/40°/60° 2700K/3000K

    /4000K/5000K
    ES3005 10/12W aluminium 95*48mm 83-85mm Bridgelux 15°/25°/38°/60° 2700K/3000K

    /4000K/5000K
    ES3006 10/12W aluminium 95*52mm 83-85mm Bridgelux 15°/25°/38°/60° 2700K/3000K

    /4000K/5000K
    DENG

    Led Ceiling Light Specifications

    Type

    Product：

    Classic spot lights

    Model No.：

    ES3004

    Electronical

    Input Voltage：

    220-240V/AC

    Frequency：

    50Hz

    Power：

    10/12W

    Power Factor：

    0.5

    Total Harmonic Distortion：

    ＜5%

    Certificates：

    CE,Rohs,ERP

    Optical

    Cover Material：

    PC

    Beam Angle：

    20/40/60°

    LED Quantity：

    1pcs

    LED Package：

    Bridgelux

    Luminous Efficiency：

    ≥90

    Color Temperature：

    2700K-5000K

    Color Render Index：　　　　　

    ≥90

    Lamp Structure

    Housing Material：　 　　

    Aluminium diecasting

    Diameter：

    Φ85*52mm

    Installation Hole：

    Hole Cut Φ68-75mm

    Surface Finished

    Fished

    powder painting(white color/black/customized color)

    Waterproof

    IP

    IP44

    Others

    Installation Type：

    Recessed Type (refer to the Manual)

    Application：

    Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices etc.

    Ambient Humidity：

    ≥80%R.H.

    Ambient Temperature：

    -10℃～+40℃

    Storage Temperature：

    -20℃～50℃

    Housing Temperature (working)：

    <70℃  (Ta=25℃)

    Lifespan：

    50000H

    Remarks:

    1. All pictures&data above are only for your reference, models may slightly differ due to factory operation.

    2. According to demand of Energy Star Rules and other Rules, Power Tolerance ±10% and CRI ±5.

    3. Lumen Output Tolerance 10%

    4. Beam Angle Tolerance ±3° (angle below 25°) or ±5° (angle above 25°).

    5. All Data were gained at Ambient Temperature 25℃.

    DENG

    Led Ceiling Light Dimension

    (unit:mm ±2mm，The following picture is a reference picture)

    classic 85-52mm

    Model

    		 Diameter① (caliber) Diameter ② (Maximum outer diameter)

    Height ③

    Suggested Hole Cut

    Net Weight（Kg）

    Remark

    ES3004

    85

    85

    52

    68-75

    0.35


    DENG

    Led Ceiling Light Installation

    Please pay more attention to the below instructions while installation, in order to avoid any possible Fire Hazard, Electric Shock or Personal harm。

    dfsdf

    Instructions:

    1. Cut off Electricity before installation.

    2. The product can used in humid environment.

    3. Please do not block any objects on the lamp (distance scale within 70mm), which will definitely affect heat emission while lamp’s working.

    4. Please double check before getting electricity on if wiring is100% OK, make sure Voltage for lamp is right and no Short-Circuit.

    DENG

    Led Ceiling Light Wiring

    The Lamp can be directly connected to City Electric Supply and there’ll be detailed User’s Manual and Wiring Diagram.

    DENG

    Led Ceiling Light Warning

    1. The Lamp is only for Indoor and Dry application, keep away from Heat, Steam, Wet, Oil, Corrosion etc, which may affect its permanence and shorten the lifespan.

    2. Please strictly follow the instructions while installation to avoid any Hazard or damages.

    3. Any installation, check or maintenance should be done by professional, please do not DIY if without enough related knowledge.

    4. For better and long performance, please clean the lamp at least every half year with soft cloth. (Do not use Alcohol or Thinner as cleaner which may damage the lamp surface).

    5. Do not expose the lamp under strong sunshine, heat sources or other high-temperature places, and storage boxes cannot be piled up exceeding the requirements.

    DENG

    Led Ceiling Light Packing Dimension

    em1079-9

    Package

    Dimension )



    LED Downlight

    Inner Box

    86*86*50mm

    Outer Box

    420*420*200mm

    48PCS/carton

    Net Weight

    9.6kg

    Gross Weight

    11.8kg

    Remarks：

    If the loading qty less than 48pcs in a carton, pearl cotton material should be used to fill remaining space.
    Accepted Loading Level is 6 (refer to the actual shown on carton box)
    The package can be as per customer’s specific demand.
    All package data are only for reference, it may be differ due to actual packing situation.


    DENG

    Led Ceiling Light Application

    Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices etc.

    photobank_副本
    photobank (2)
    photobank (1)
    DENG

    Led Ceiling Light Product Introduction

        The latest stylish range of hospitality industry lighting fixtures - spotlight with 68-75mm aperture. For illuminating hotel corridors, lobbies and meeting rooms, this sleek, modern spotlight offers high-quality lighting and a low-profile design. With a hole cut of 68-75mm, this spotlight is ideal for creating subtle yet impactful lighting effects that accentuate artwork or architectural features in a room. Adjustable angles allow for easy customization of lighting direction, ensuring your guests always having a cozy and warm ambiance. Made of high quality material, this spotlight is durable. Its minimalist design makes it ideal for modern and contemporary hospitality industry with a range of interior design styles. In addition to its function, it's also energy efficient, helping to reduce your hotel's carbon footprint and energy bills. Its low heat emission means that it is suitable for continuous use, making it an excellent investment for your hospitality industry lighting needs. It is a breeze to install inside the ceiling or on the wall. Plus, its low-maintenance design ensures that you won't incur ongoing maintenance or replacement costs. Overall, the spotlight with 68-75mm aperture  is a versatile, reliable and stylish option for any hotel pursuing for upgrading its lighting options.
