152W Recessed Linear Spot Lights cutsize 40537mm CRI 90/95 3000K for 4s Car Shop, Restaurant

Short Description:

POWER: 15*2W

SIZE :412.7*45*49mm

HOLECUT : 405*37mm

BEAM ANGLE :15° 30° 45°

POWER SUPPLY: Triac/0-10v/dali dimming optional

Input Voltage: AC220-240v

PF: 0.5

Driver : Lifud

LED source: ORSAM 3030-3V-3W

Optical Solution : lens

CRI: 90

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Products Photos

Power/W	Material	Size	Holecut	LED Source	Beam Angle	CCT
5*2W	Aluminium diecasting	Φ1474549mm	140*37mm	ORSAM 3030-3V-3W	15°/30°/45°	3000K/4000K/5000K
10*2W	Aluminium diecasting	Φ2804549mm	273*37mm	ORSAM 3030-3V-3W	15°/30°/45°	3000K/4000K/5000K
15*2W	Aluminium diecasting	Φ412.74549mm	405*37mm	ORSAM 3030-3V-3W	15°/30°/45°	3000K/4000K/5000K

Specifications

Type	Product：	Recessed Linear Spot Light
Type	Model No.：	EG1003
Electronical	Input Voltage：	220-240V/AC
	Frequency：	50Hz
	Power：	15*2W
	Power Factor：	0.5
	Total Harmonic Distortion：	＜5%
	Certificates：	CE,Rohs,CRP
Optical	Cover Material：	PC
	Beam Angle：	15° 30° 45°
	LED Quantity：	1pcs
	LED Package：	ORSAM 3030-3V-3W
	Luminous Efficiency：	≥90
	Color Temperature：	2700-5000K
	Color Render Index：	≥90
Lamp Structure	Housing Material：	Aluminum diecasting
	Diameter：	Φ412.745H49mm
	Installation Hole：	Hole cut Φ405*37mm
Surface Fnished	Fished	Powder painting(white color/customized color)
Antiglare Cover	color	white/black/silver/gunblack/gold
Waterproof	IP	20
Others	Installation Type：	Recessed Type (refer to the Manual)
	Application：	Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices etc.
	Ambient Humidity：	≥80%R.H.
	Ambient Temperature：	-10℃～+40℃
	Storage Tempertature：	-20℃～50℃
	Housing Temperature (working)：	<70℃ (Ta=25℃)
	Lifespan：	50000H

Remarks:

1. All pictures&data above are only for your reference, models may slightly differ due to factory operation.

2. According to demand of Energy Star Rules and other Rules, Power Tolerance ±10% and CRI ±5.

3. Lumen Output Tolerance 90%－120%.

4. Beam Angle Tolerance ±3° (angle below 25°) or ±5° (angle above 25°).

5. All Data were gained at Ambient Temperature 25℃.

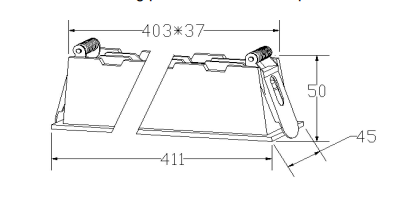

Dimension

(unit:mm ±2mm，The following picture is a reference picture)

Model	Diameter① (caliber)	Diameter ② (Maximum outer diameter)	Height ③	Suggested Hole Cut	Net Weight（Kg）	Remark
EG1003	412.7	45	49	405*37	0.8

Installation

Please pay more attention to the below instructions while installation, in order to avoid any possible Fire Hazard, Electric Shock or Personal harm.

Instructions:

1. Cut off Electricity before installation.

2. The product can used in humid environment.

3. Please do not block any objects on the lamp (distance scale within 70mm), which will definitely affect heat emission while lamp’s working.

4. Please double check before getting electricity on if wiring is100% OK, make sure Voltage for lamp is right and no Short-Circuit.

Wiring

The Lamp can be directly connected to City Electric Supply and there’ll be detailed User’s Manual and Wiring Diagram.

Its LED lights provide excellent and long-lasting illumination while also reducing energy consumption. Overall, the double-ended square hotel spotlight is a great lighting option for hotels looking to enhance their interior design and ambiance. With its adjustable design, energy-saving features and contemporary style, it is sure to create a cozy and inviting atmosphere for guests.

Warning

1. The Lamp is only for Indoor and Dry application, keep away from Heat, Steam, Wet, Oil, Corrosion etc, which may affect its permanence and shorten the lifespan.

2. Please strictly follow the instructions while installation to avoid any Hazard or damages.

3. Any installation, check or maintenance should be done by professional, please do not DIY if without enough related knowledge.

4. For better and long performance, please clean the lamp at least every half year with soft cloth. (Do not use Alcohol or Thinner as cleaner which may damage the lamp surface).

5. Do not expose the lamp under strong sunshine, heat sources or other high-temperature places, and storage boxes cannot be piled up exceeding the requirements.

Carton Box Dimension

Package	Dimension )
Package	LED Downlight
Inner Box	868650mm
Outer Box	420420200mm 48PCS/carton
Net Weight	9.6kg
Gross Weight	11.8kg
Remarks: If the loading qty less than 48pcs in a carton, pearl cotton material should be used to fill remaining space. Accepted Loading Level is 6 (refer to the actual shown on carton box). The package can be as per customer’s specific demand. All package data are only for reference, it may be differ due to actual packing situation.
